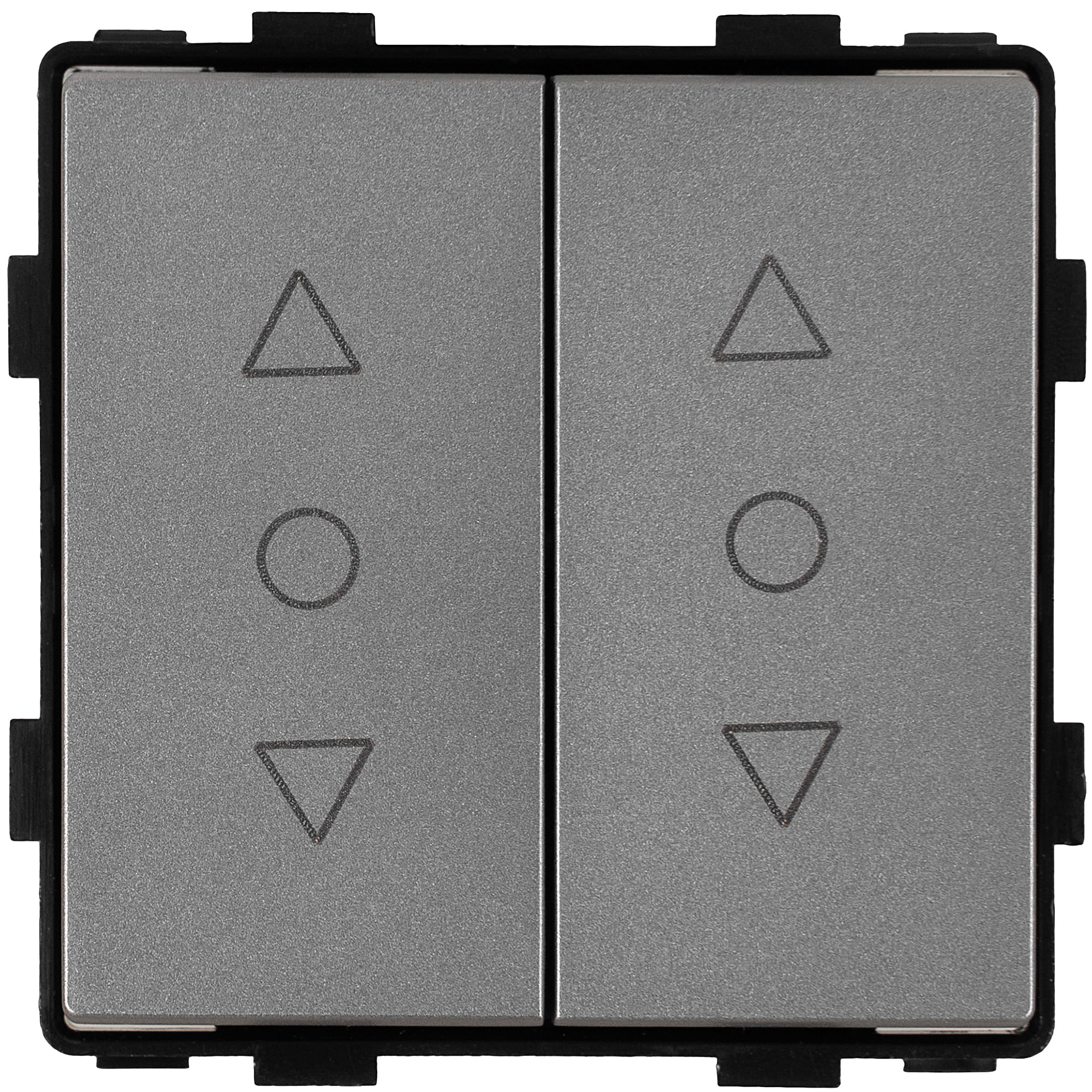

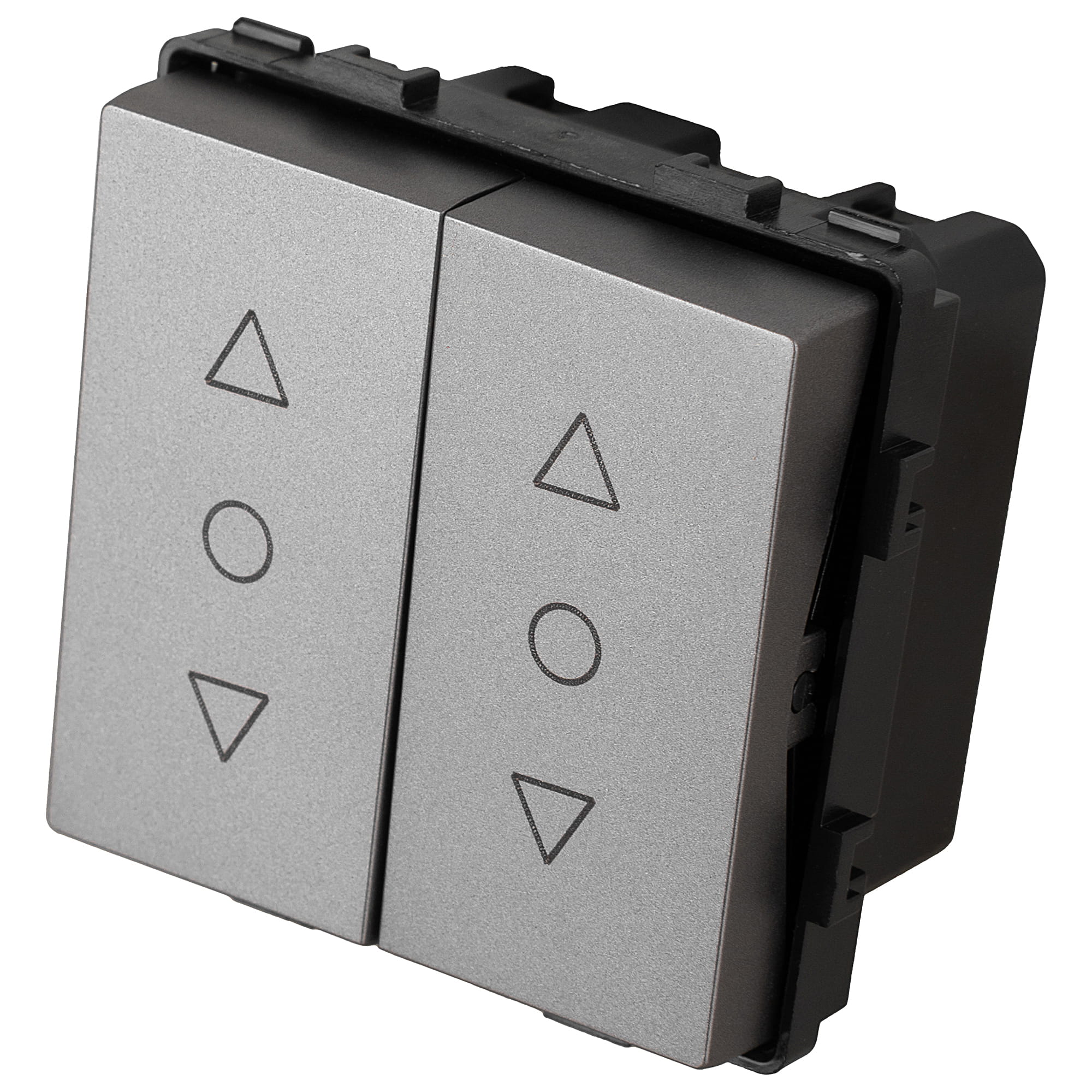

Shutter switch double is designed for convenient control of electric roller blinds. Equipped with two buttons, each with three positions: 1-0-2 (up - stop - down), it allows for raising, stopping, and lowering the blind by setting the button accordingly.

Operating principle:

The switch operates in a bistable system - it does not require continuous holding. The roller moves until it reaches the limit position, and it can be stopped at any moment by setting the button to position 0. Once switched, the button remains in the selected position thanks to the mechanical latch (known as latching switch).

Important:

The switch can only be used with roller blinds equipped with a limit switch (known as a limit switch), which automatically disconnects the power supply upon reaching the appropriate position.

The module can control 2 roller blinds simultaneously

Description:

• Colour - grey
• Type - double three-position shutter
• Voltage - 110-250V / 50 Hz-60 Hz
• Current - 16A
• Protection rating - IP20
• Certifications - RoHS, CE
