Triple Position Blind Switch Module with Maintenance Dual Gold for MIUUN Frames

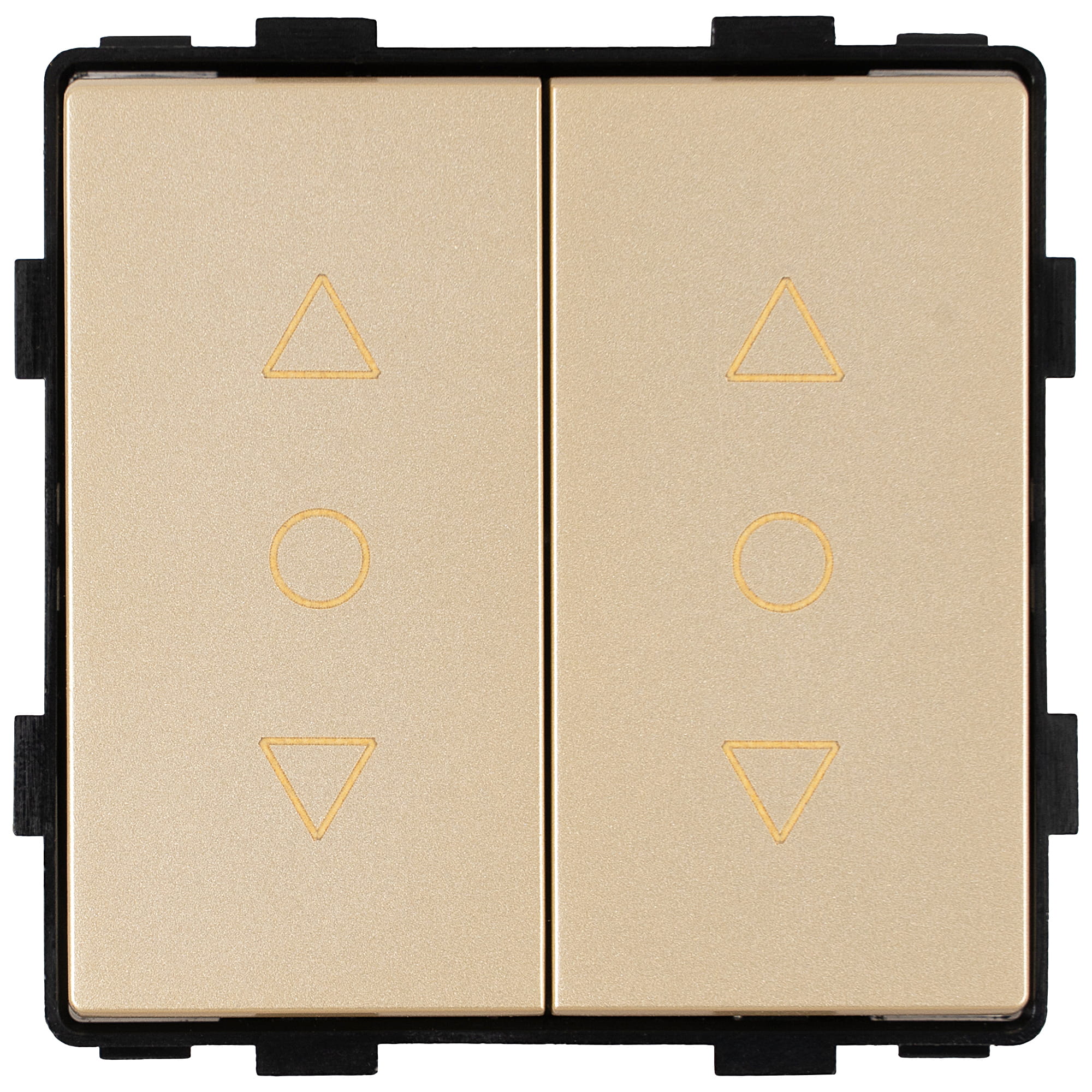

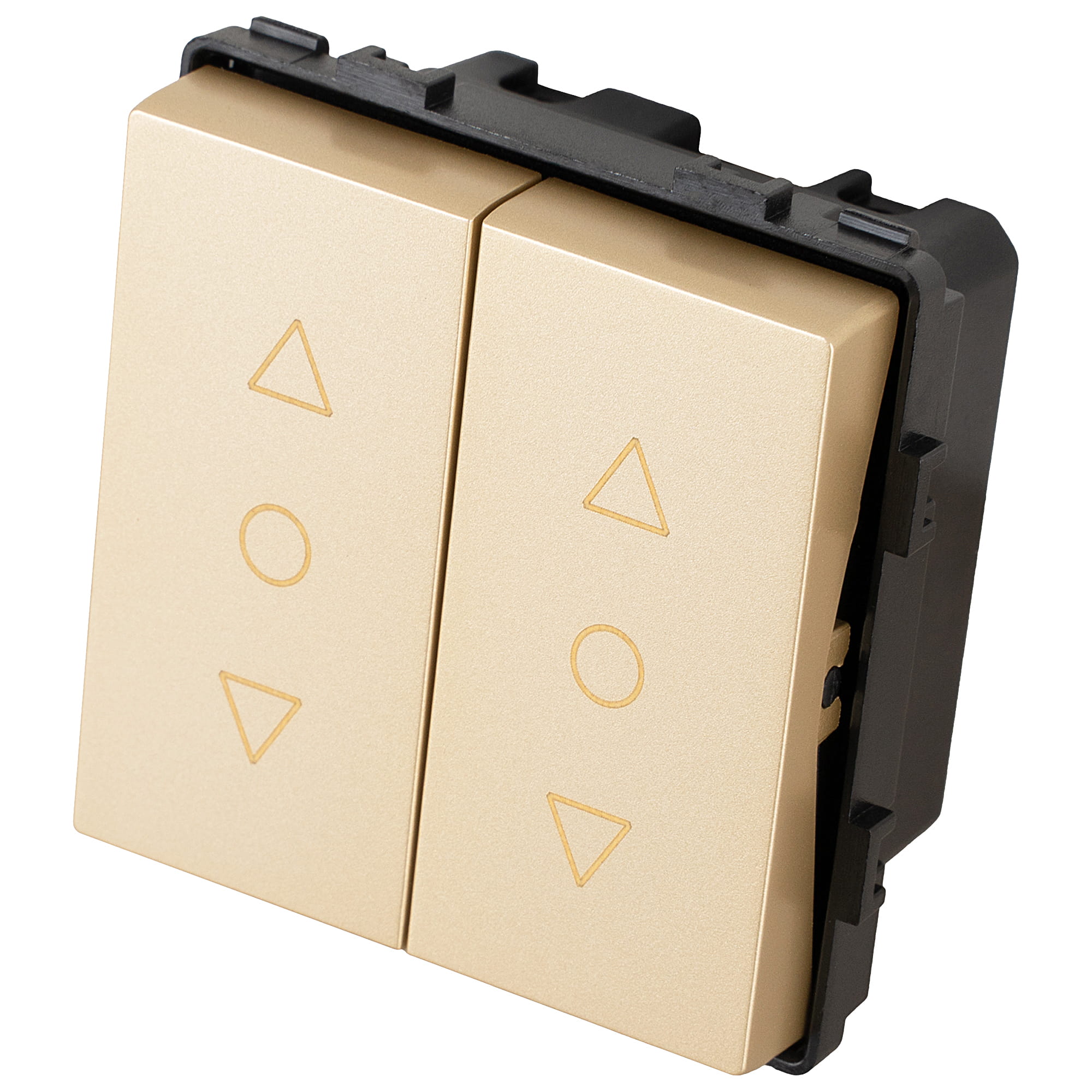

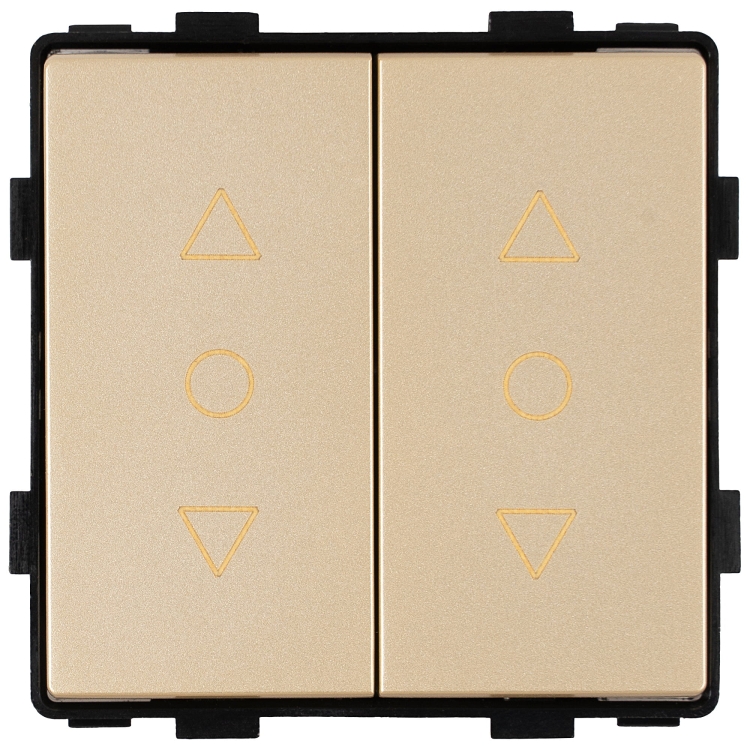

Blind switch dual is designed for convenient control of electric blinds. Equipped with two buttons, each with three positions: 1-0-2 (up - stop - down), it allows raising, stopping, and lowering the blind by setting the button accordingly.

Operating principle:

The switch operates in a bistable system - it does not require continuous holding. The blind moves until it reaches the limit position, and at any moment it can be stopped by setting the button to position 0. After switching, the button remains in the selected position due to the mechanical lock (known as switch with maintenance).

Important:

The switch can only be used with blinds equipped with a limit switch (known as a limit switch), which automatically cuts off the power supply once the appropriate position is reached.

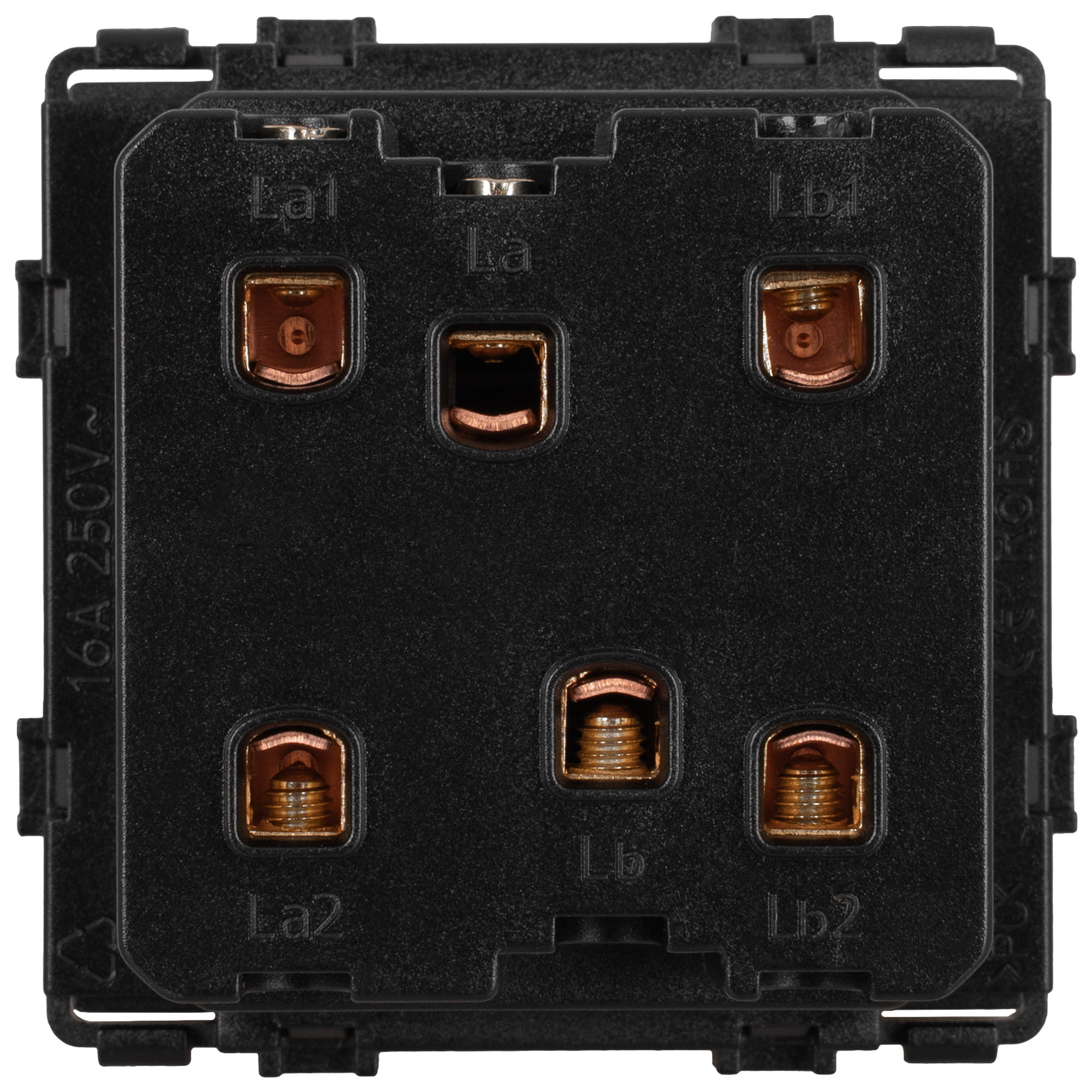

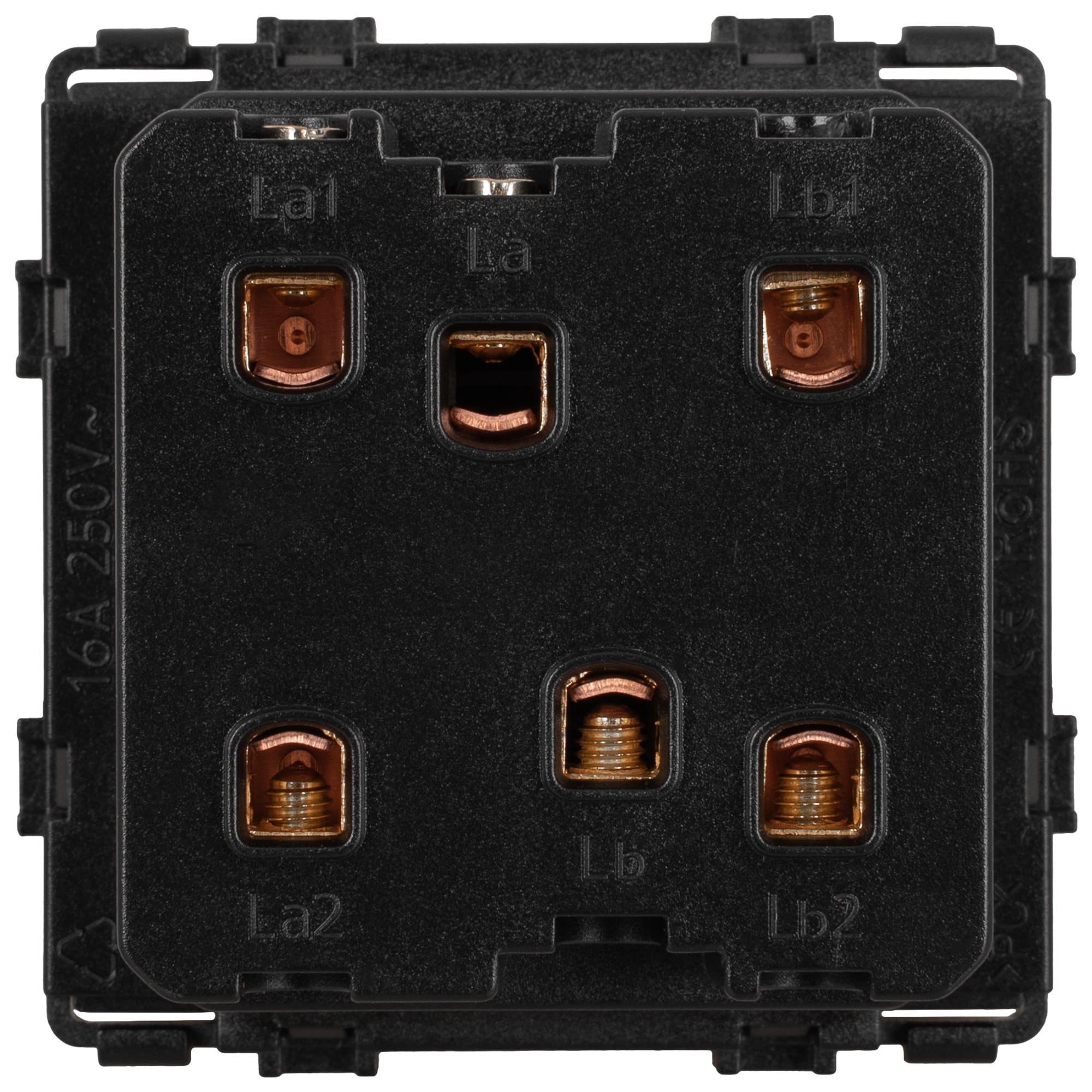

The module can control 2 blinds simultaneously

Description:

• Colour - gold
• Type - dual triple position blind
• Voltage - 110-250V / 50 Hz-60 Hz
• Current - 16A
• Degree of protection - IP20
• Certificates - RoHS, CE
