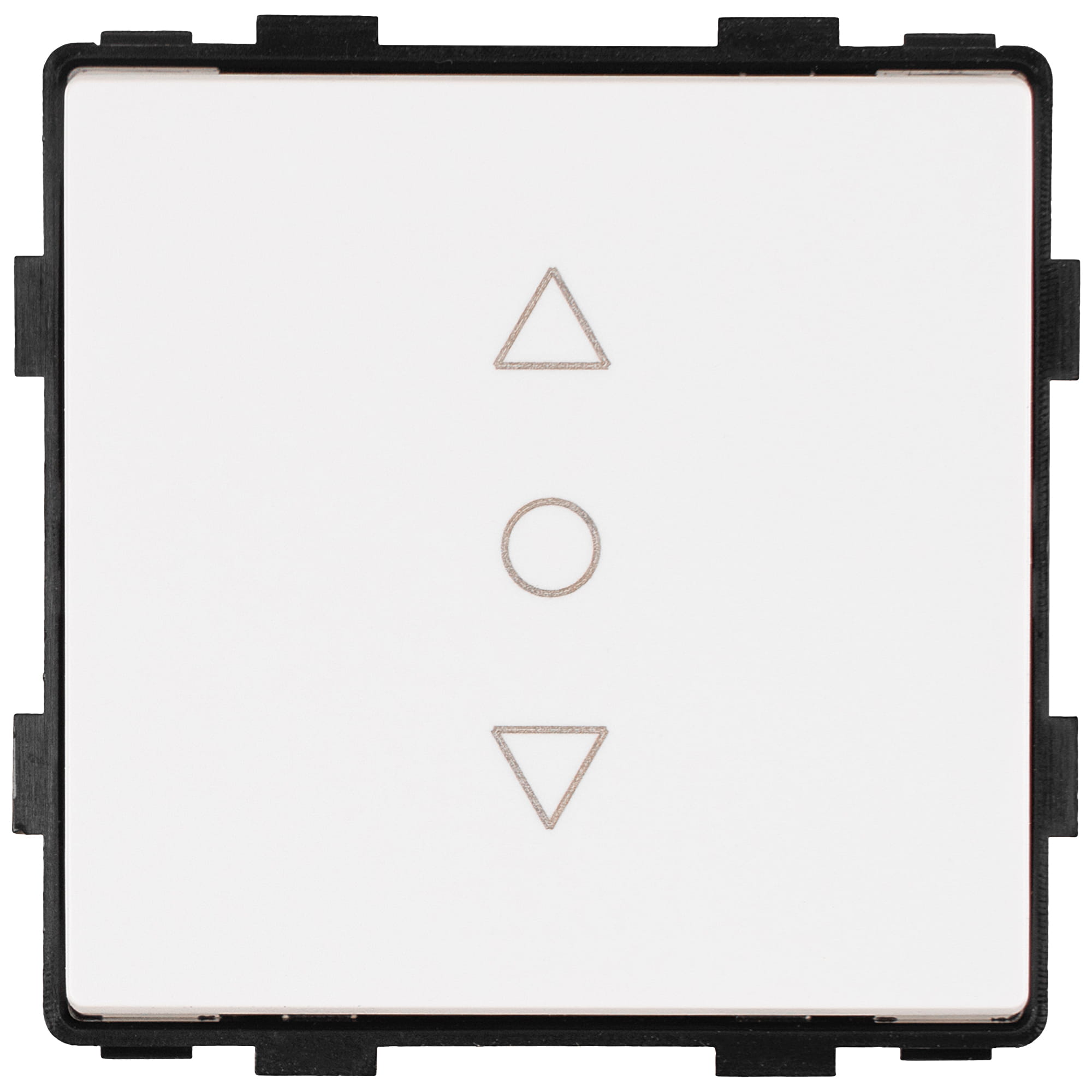

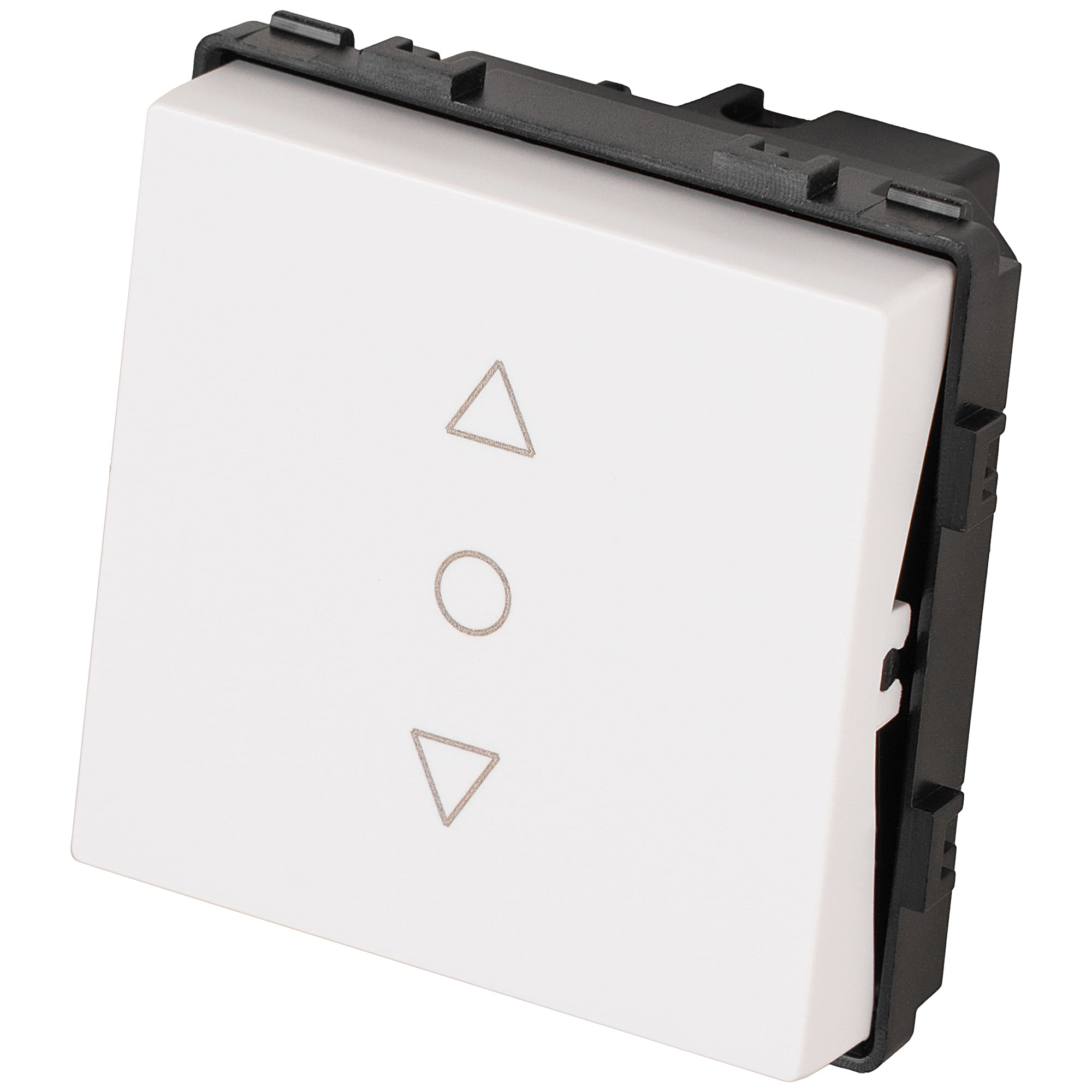

Shutter switch is designed for convenient control of electric rollers. Equipped with one button with three positions: 1-0-2 (up - stop – down), it allows for raising, stopping, and lowering the roller by setting the button appropriately.

Operating principle:

The switch operates in a bistable system - it does not require continuous holding. The roller moves until it reaches the limit position, and at any moment it can be stopped by setting the button in position 0. Once switched, the button remains in the selected position, thanks to the mechanical locking (so-called latching switch).

Important:

The switch can only be used with rollers equipped with an end switch (commonly known as a limit switch), which automatically cuts off the power supply upon reaching the appropriate position.

Description:

• Colour - white
• Type - single three-position shutter

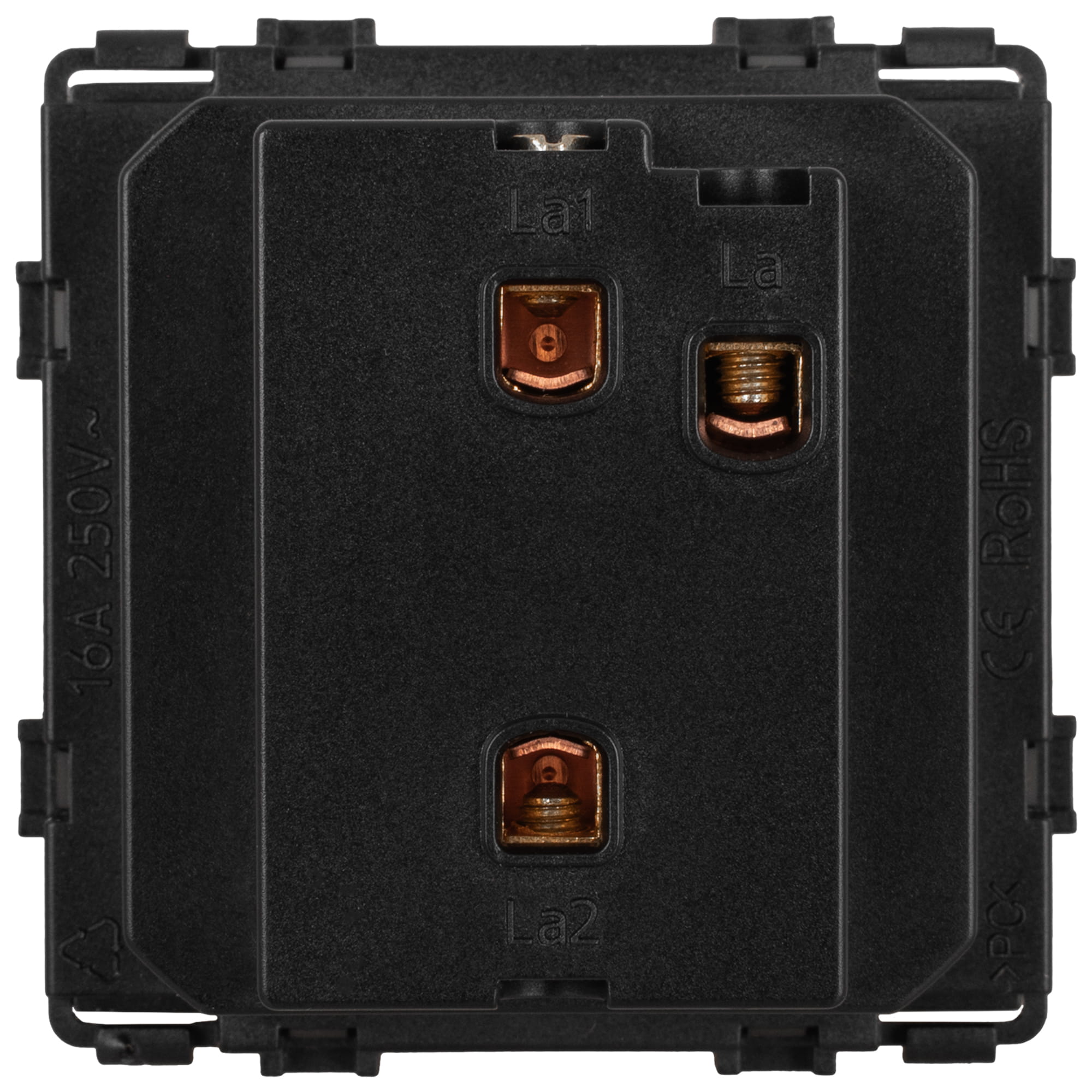

• Voltage - 110-250V /50 Hz-60 Hz
• Current - 16A
• Protection rating - IP20
• Certifications - RoHS, CE
