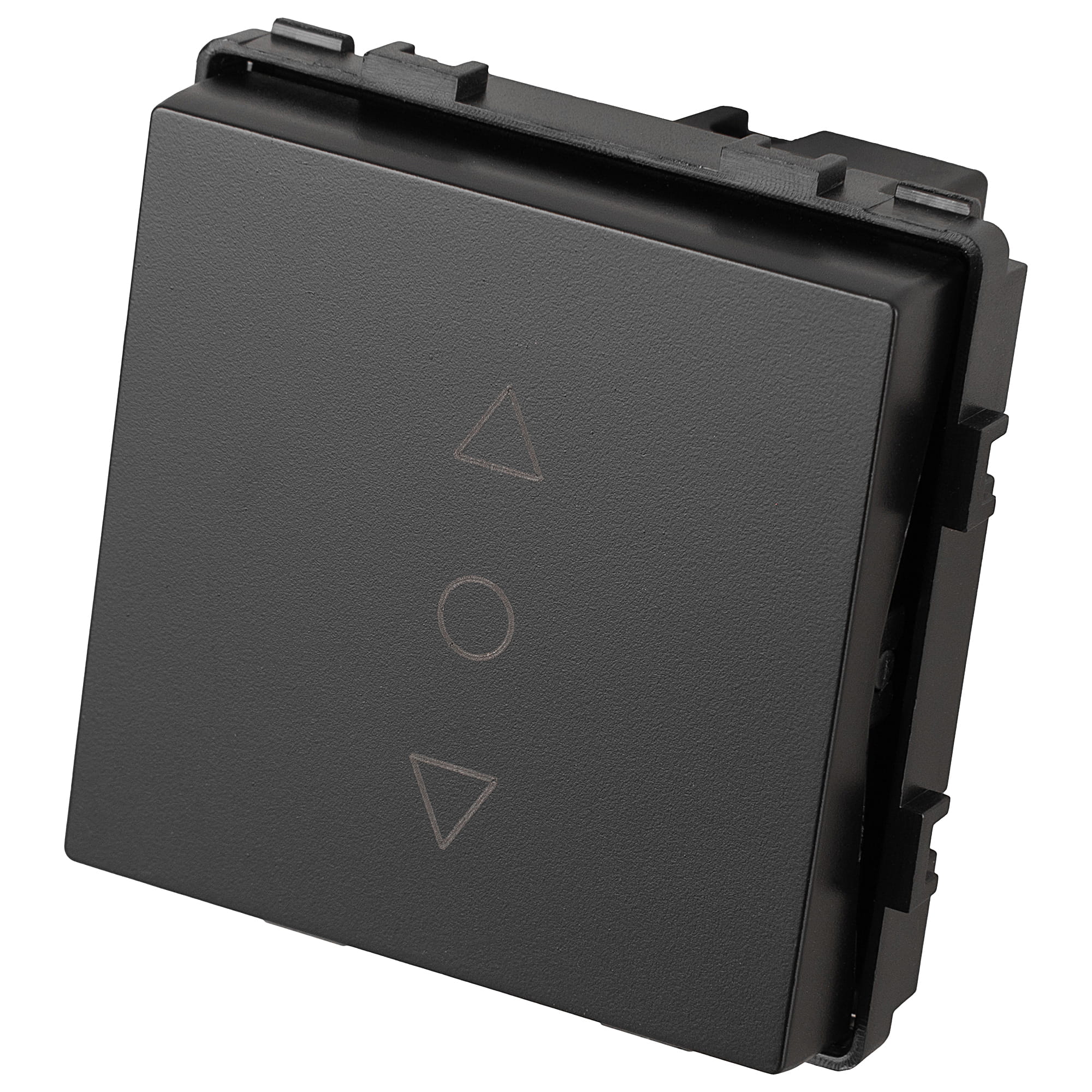

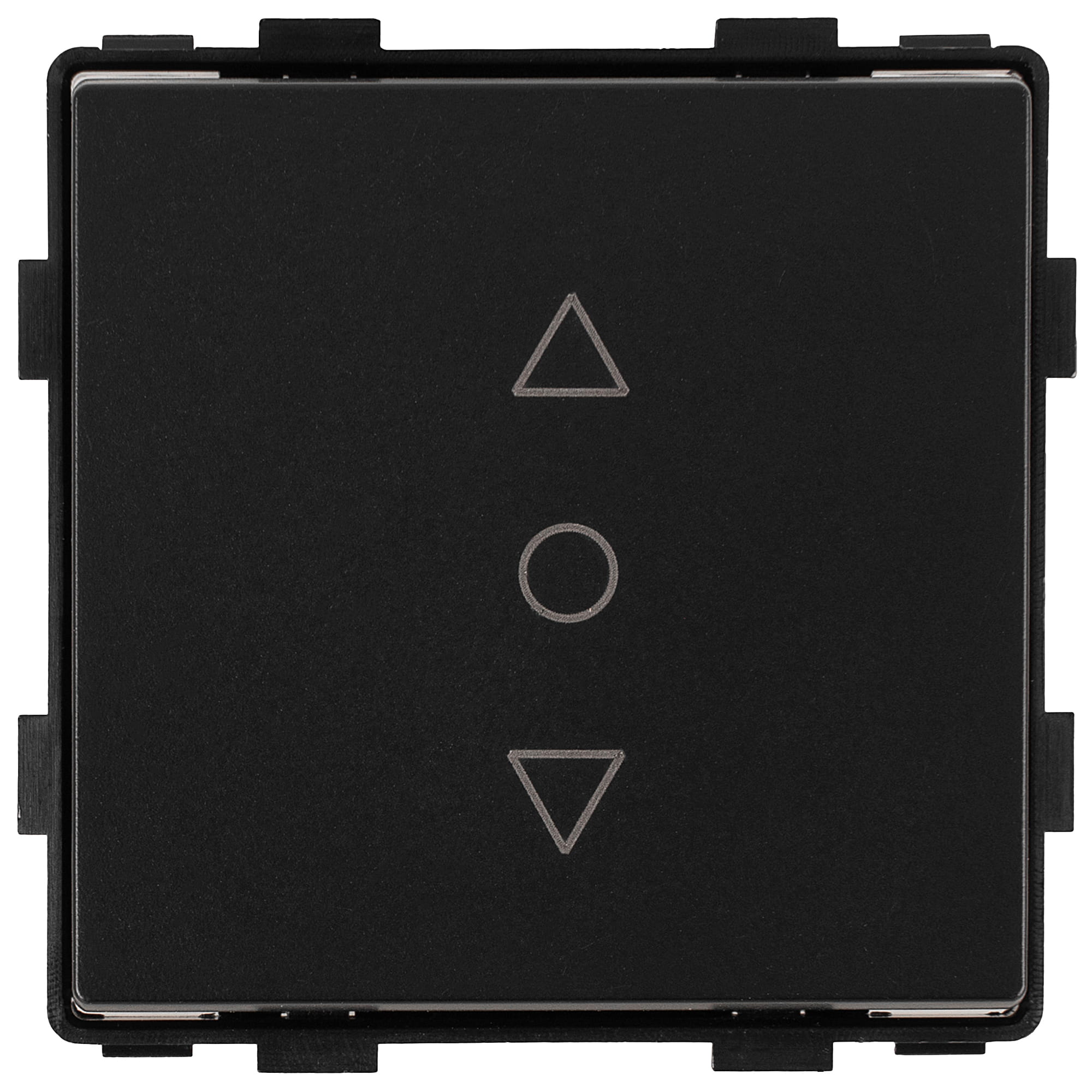

Blind switch is designed for convenient control of electric blinds. It features a single button with three positions: 1-0-2 (up - stop - down), allowing for raising, stopping, and lowering the blind by appropriately setting the button.

Operating principle:

The switch operates in a bistable system - it does not require continuous holding. The blind moves until it reaches the limit position, and at any moment it can be stopped by setting the button to position 0. After switching, the button remains in the chosen position, thanks to a mechanical lock (so-called latching switch).

Important:

The switch can only be used with blinds equipped with a limit switch (commonly referred to as a limit switch), which automatically cuts off the power supply upon reaching the appropriate position.

Description:

• Colour - black
• Type - single three-position blind switch

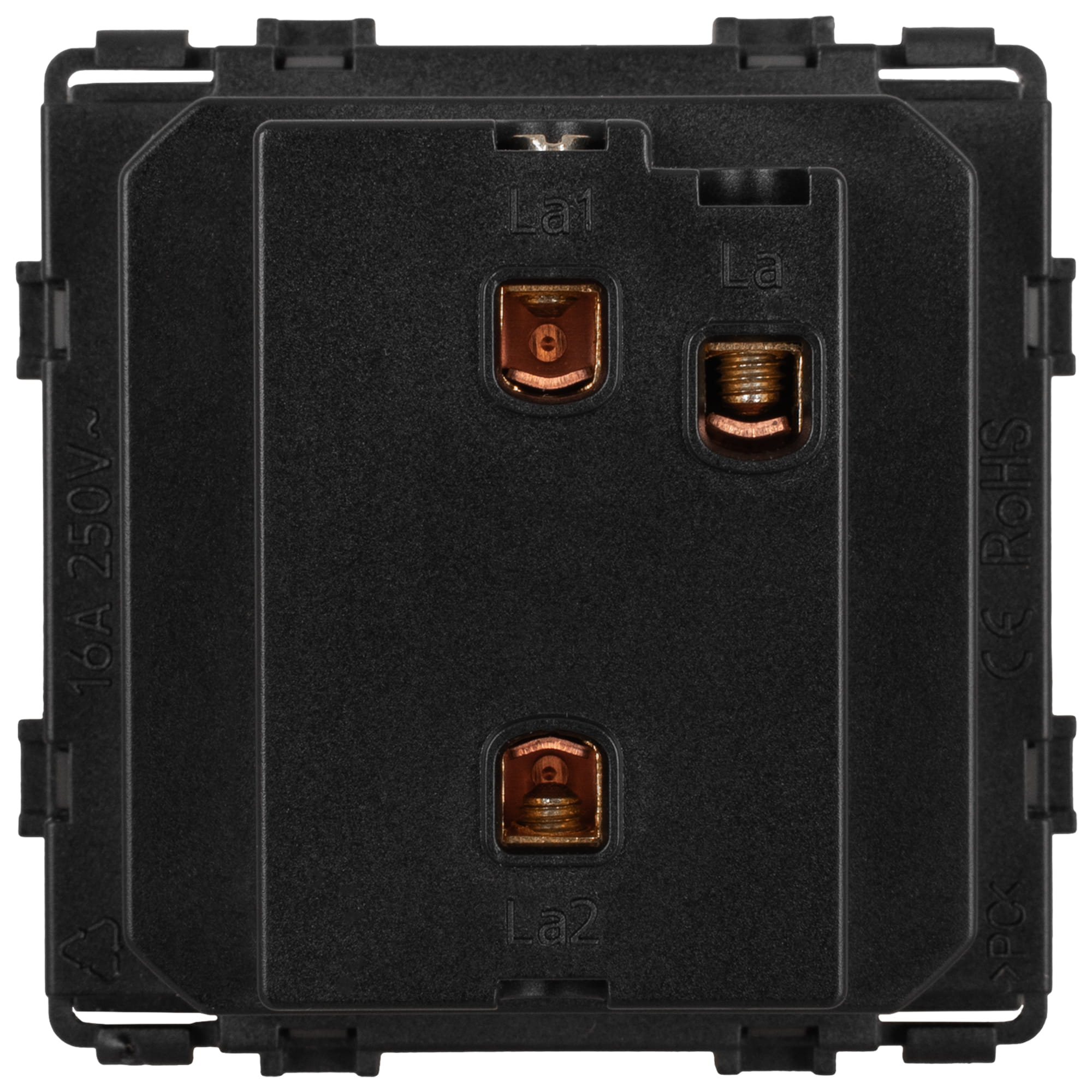

• Voltage - 110-250V / 50 Hz-60 Hz
• Current - 16A
• Degree of protection - IP20
• Certifications - RoHS, CE
