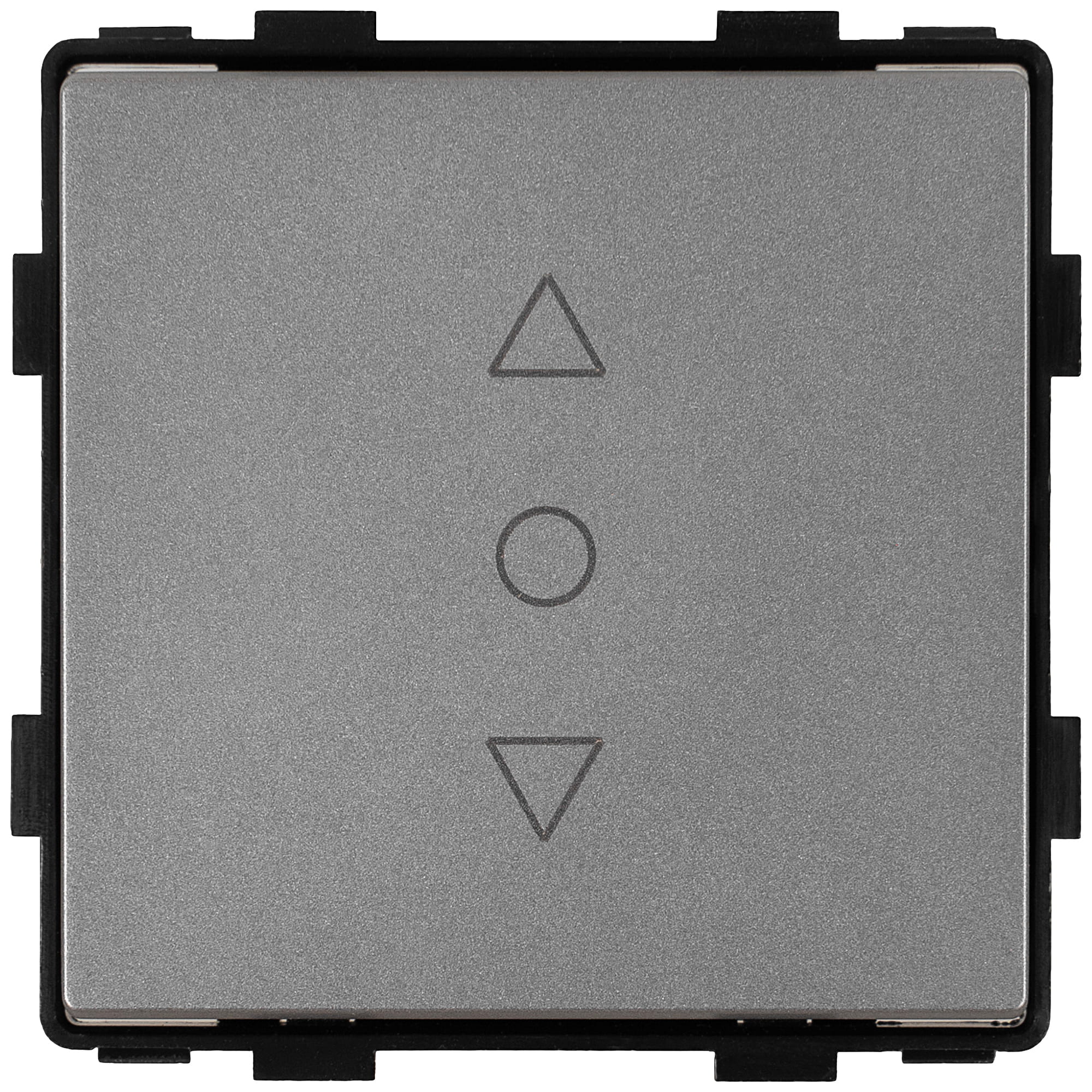

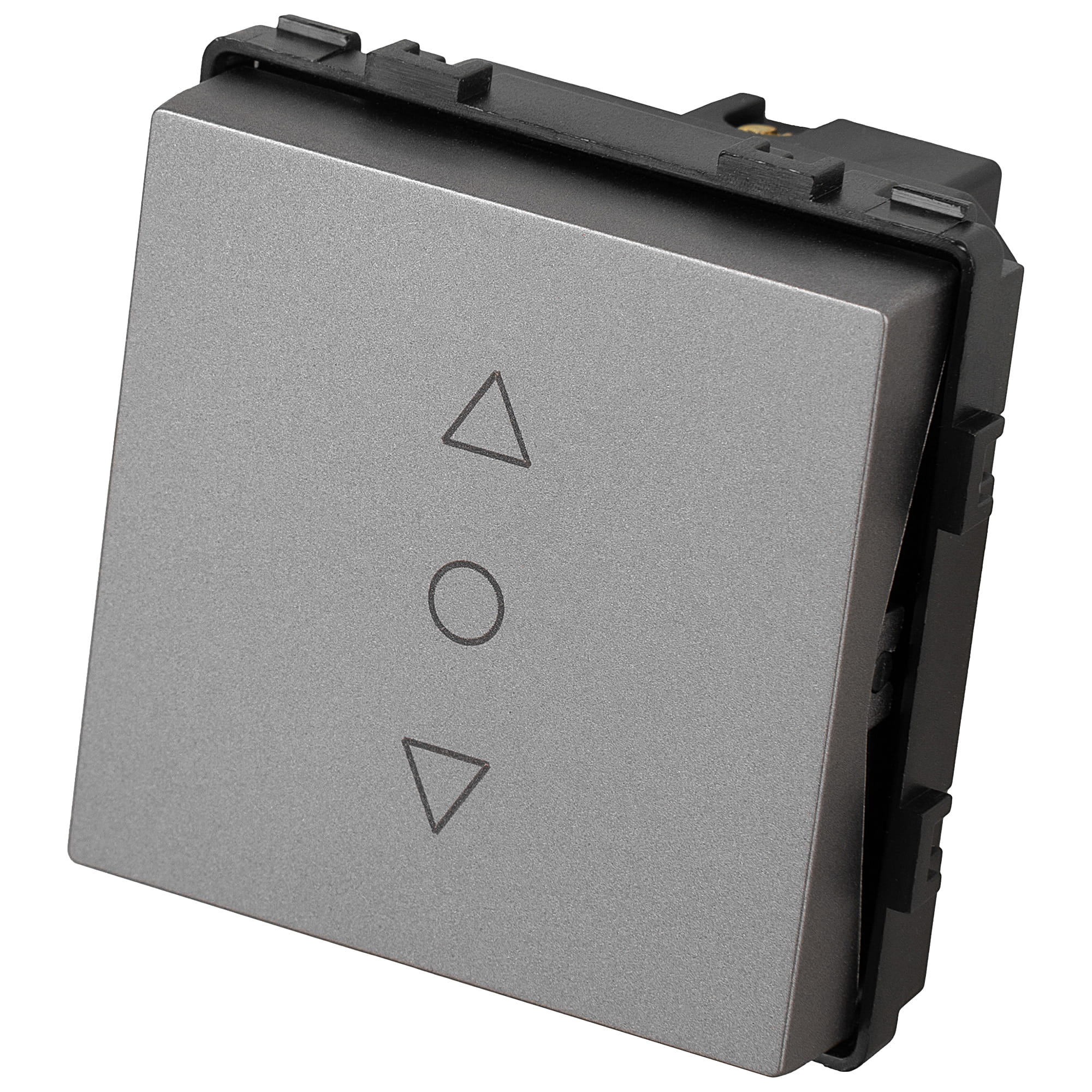

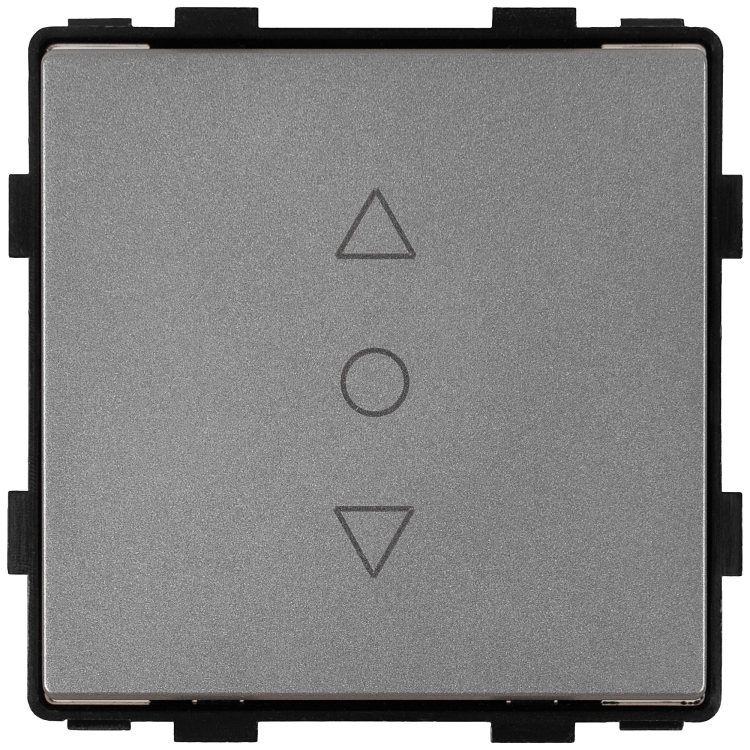

Three-Position Roller Blind Switch Module with Latching Single Grey for MIUUN Frames

The roller blind switch is designed for convenient control of electric blinds. It is equipped with one button with three positions: 1-0-2 (up - stop - down), allowing for raising, stopping, and lowering the blind by appropriately adjusting the button.

Operating principle:

The switch operates in a bistable system - it does not require continuous holding. The blind moves until it reaches a limit position, and can be stopped at any moment by setting the button to position 0. Once switched, the button remains in the selected position due to a mechanical lock (known as a latching switch).

Important:

The switch can only be used with blinds equipped with a limit switch (known as a limit switch), which automatically cuts off the power supply once the appropriate position is reached.

Description:

• Colour - grey
• Type - single three-position blind switch
• Voltage - 110-250V / 50 Hz-60 Hz
• Current - 16A
• Protection rating - IP20
• Certifications - RoHS, CE
