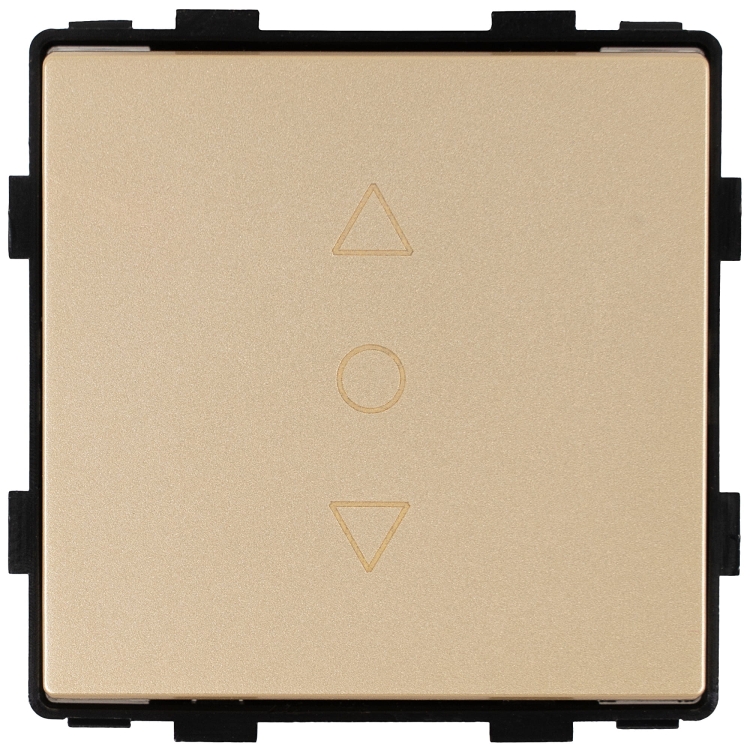

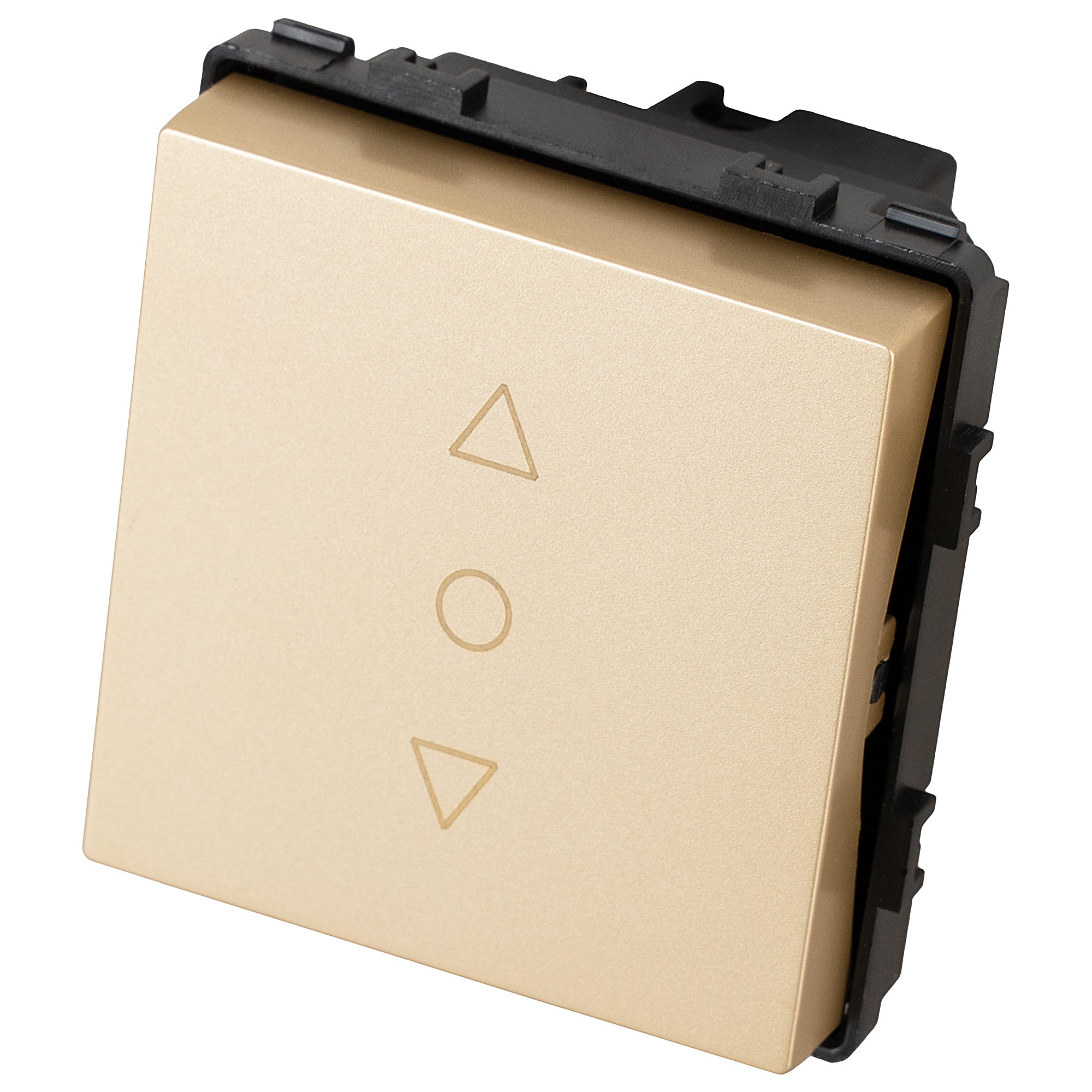

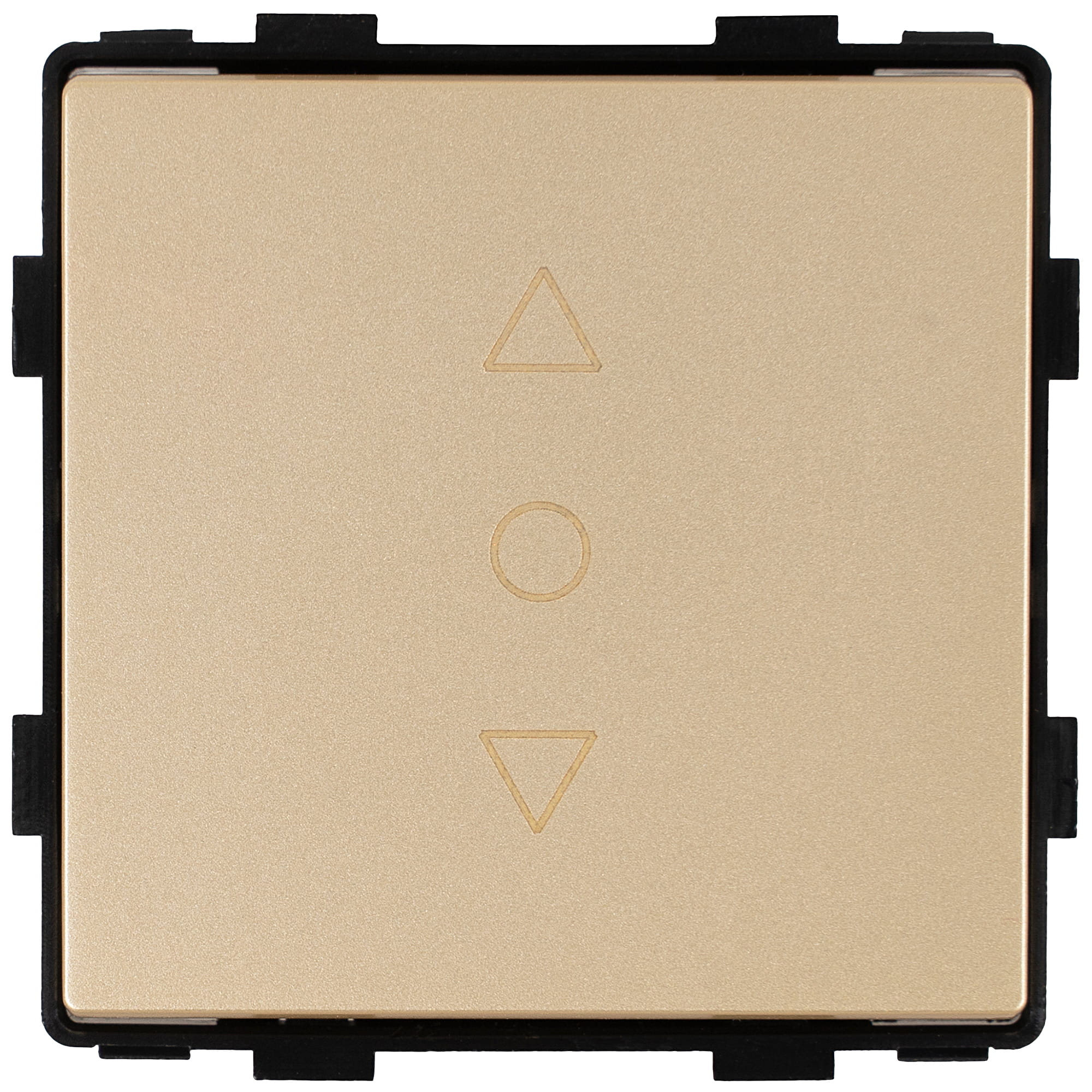

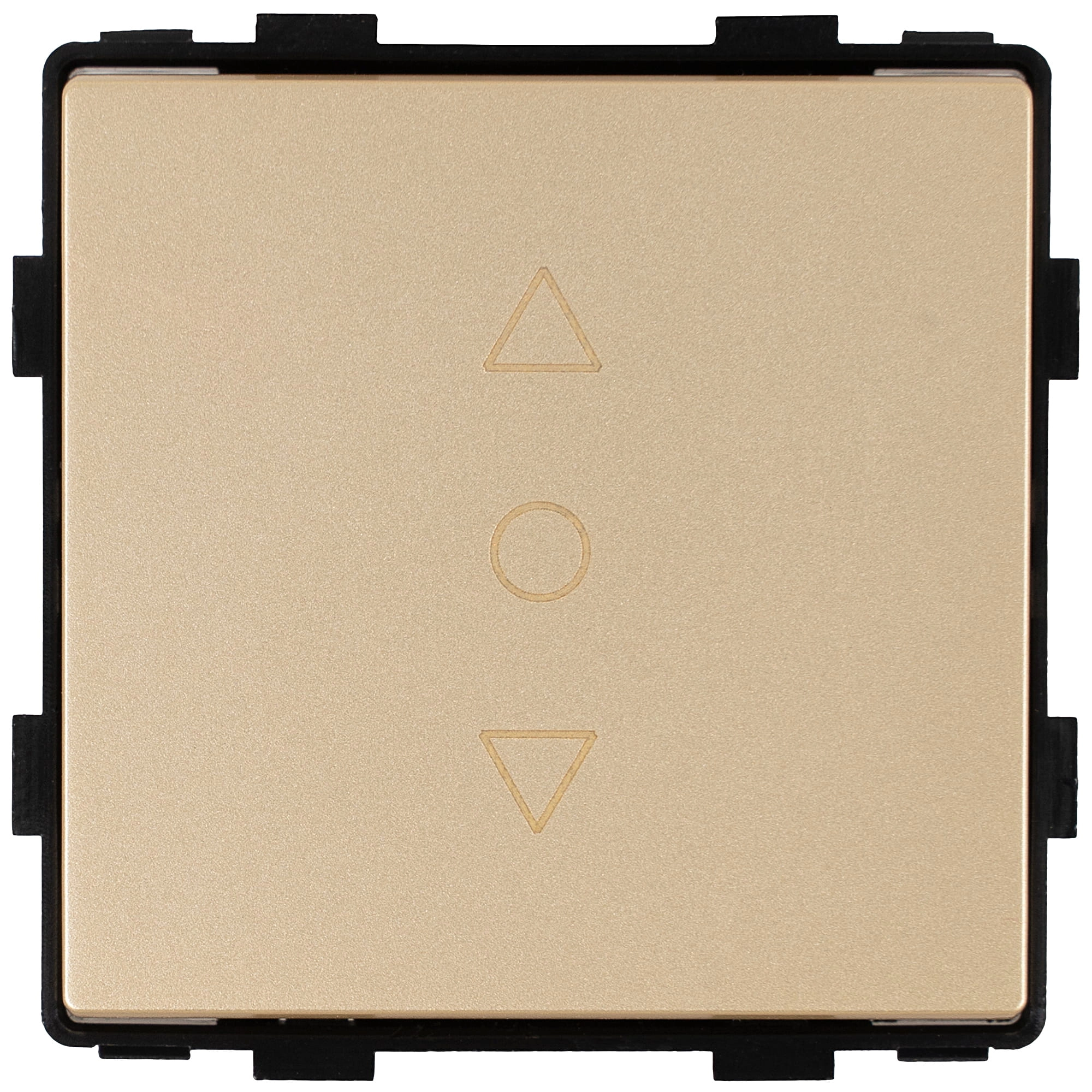

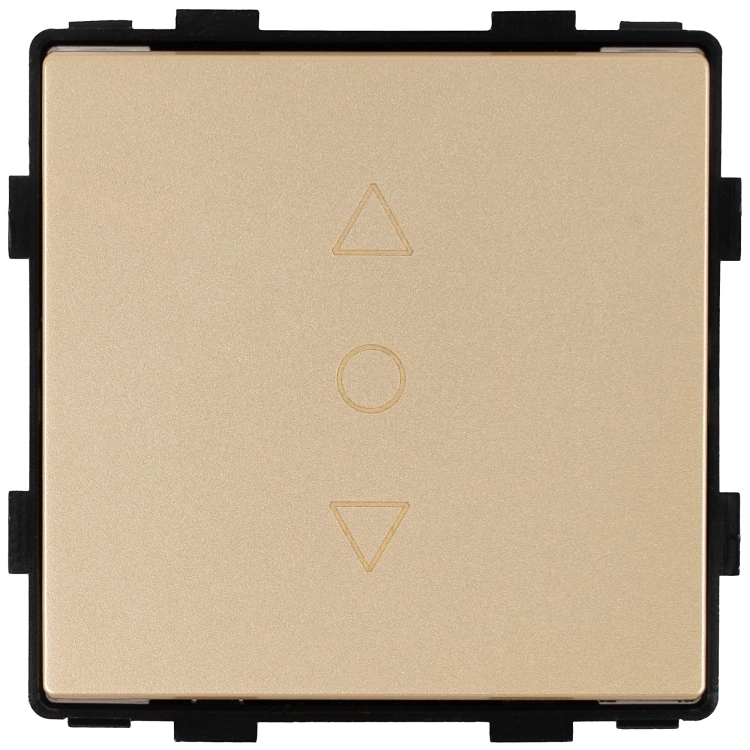

The roller blind switch is designed for convenient control of electric blinds. It features a single button with three positions: 1-0-2 (up - stop - down), allowing for raising, stopping, and lowering the blind by adjusting the button accordingly.

Operation principle:

The switch operates on a bistable system - it does not require continuous pressing. The blind moves until it reaches the limit position, and at any moment it can be stopped by setting the button to position 0. Once switched, the button remains in the selected position due to a mechanical lock (known as a latching switch).

Important:

The switch can only be used with blinds equipped with a limit switch (known as a limit switch), which automatically cuts off the power once the appropriate position is reached.

Description:

• Colour - gold
• Type - single three-position roller blind

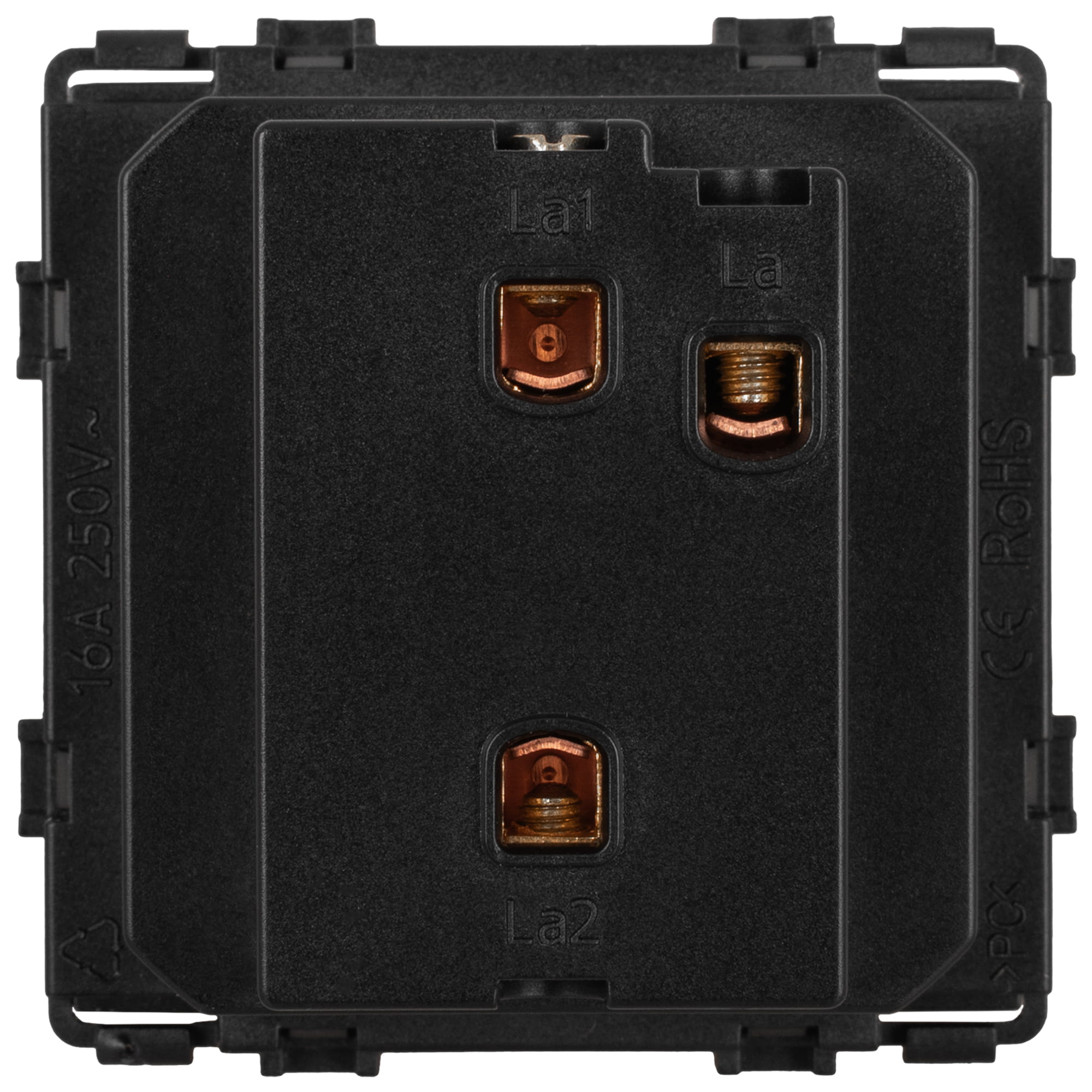

• Voltage - 110-250V /50 Hz-60 Hz
• Current - 16A
• Degree of protection - IP20
• Certifications - RoHS, CE
