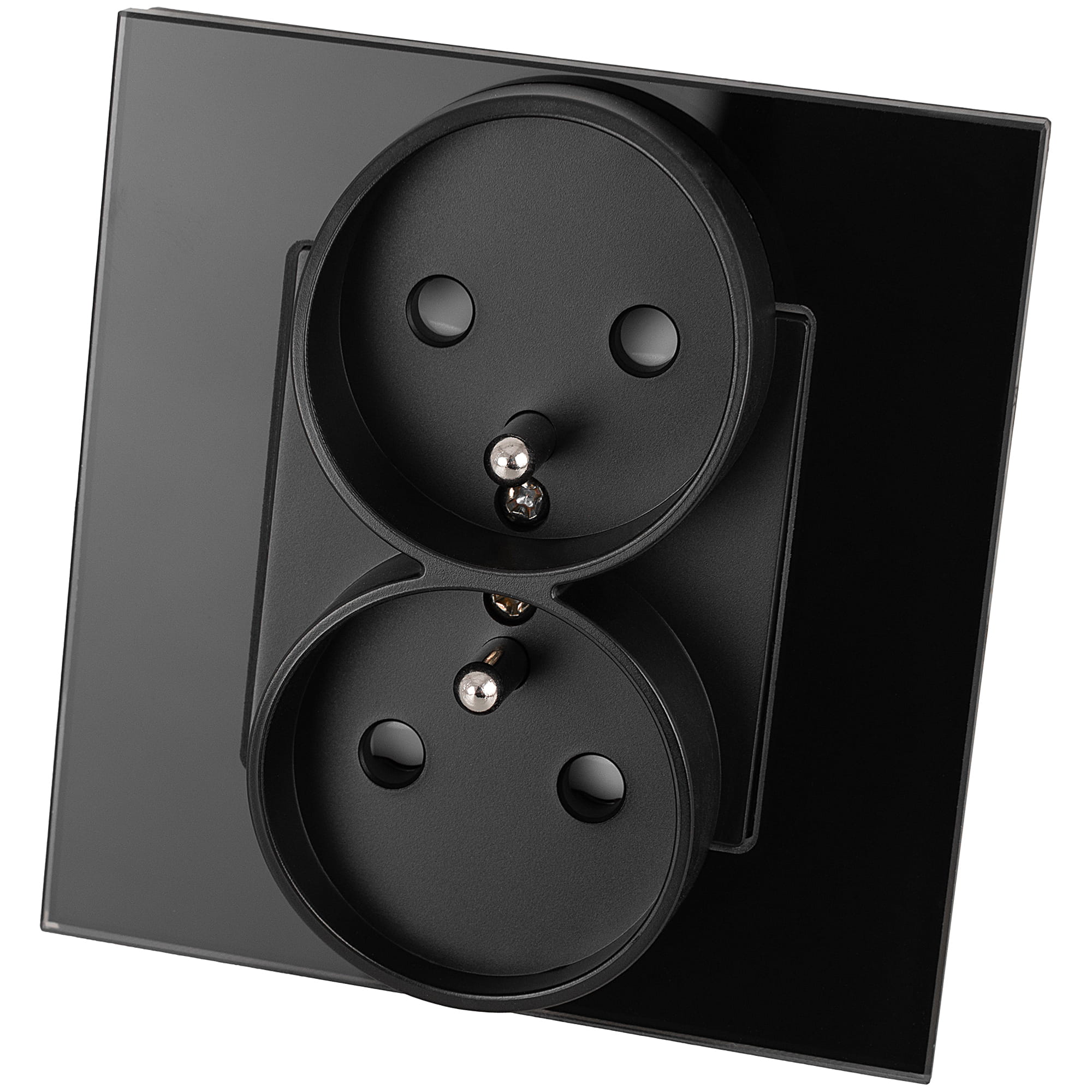

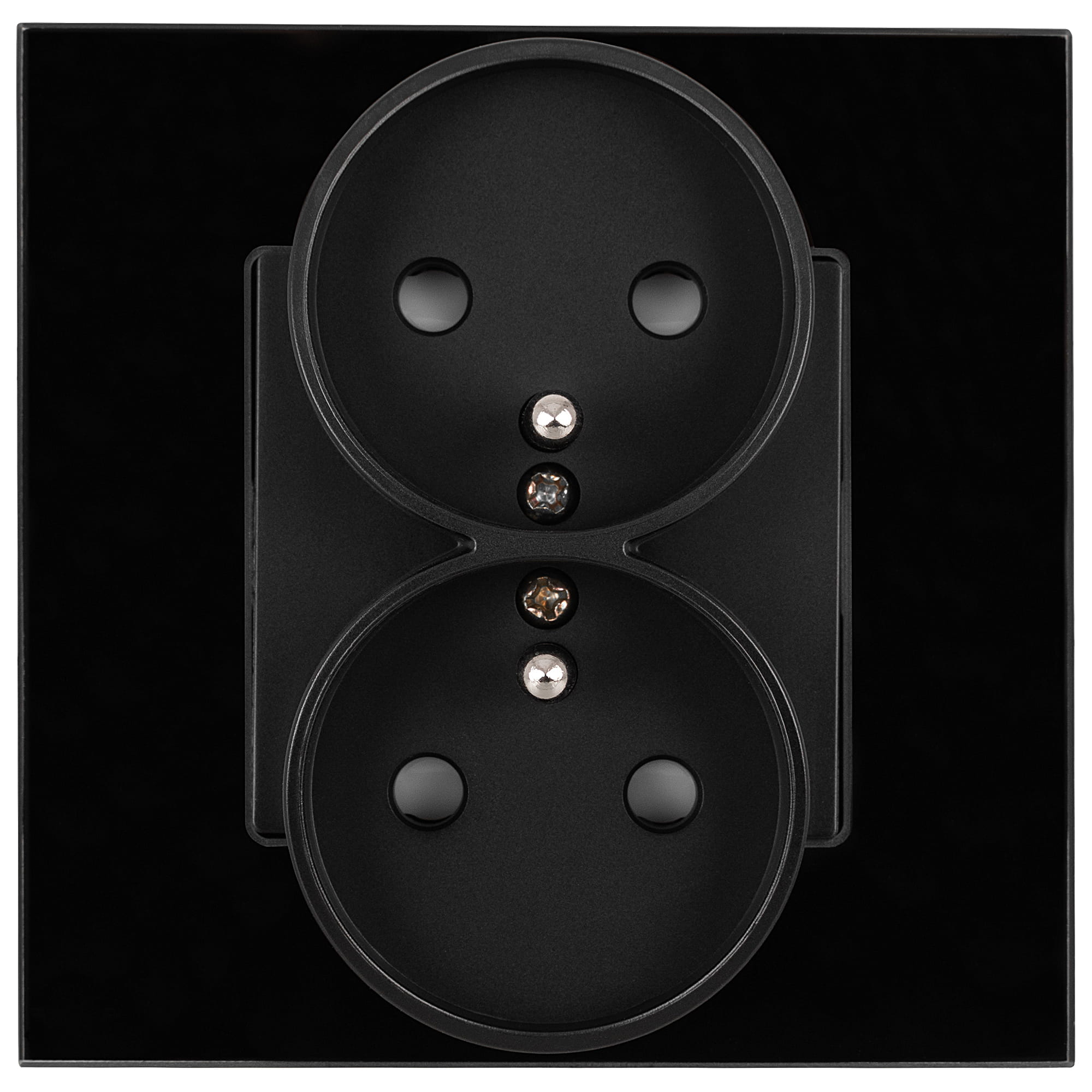

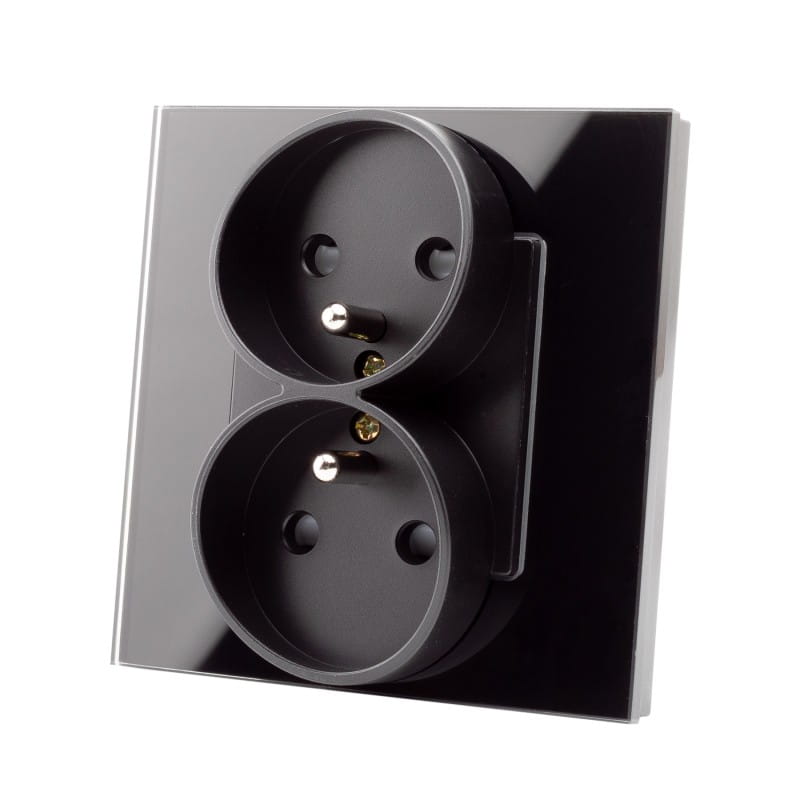

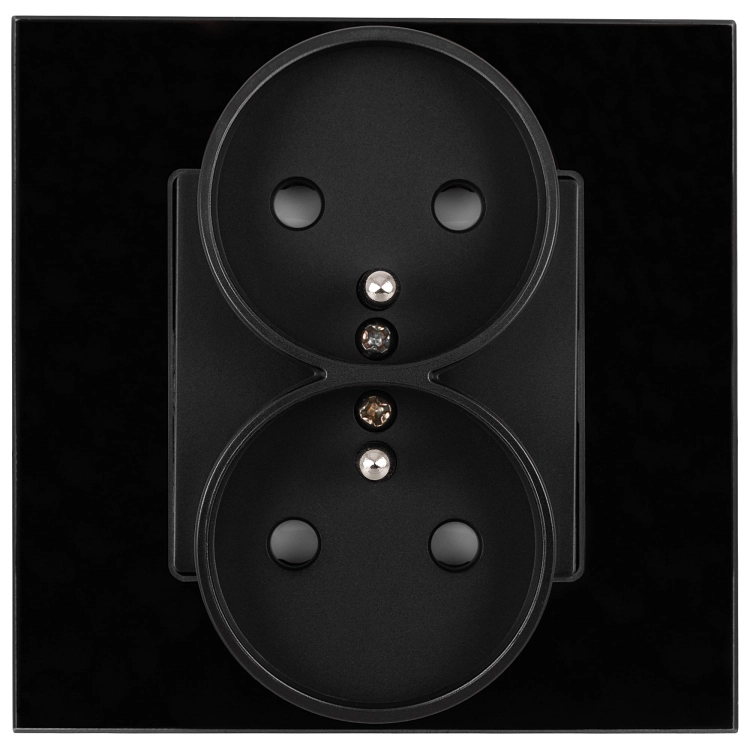

Glass Dual Electrical Socket, Type E (with Earth Pin), black, For MIUUN

The offer includes a black dual socket (module + glass frame) - 1 pc.

Beautiful and stylish tempered glass product of high quality, easy to install, durable and damage resistant.

• Frame - glass
• Color - black
• Type - dual
• Module (center) - solid black casting
• Earthing - with earth pin
• Voltage - 110-250V / 50 Hz-60 Hz
• Current - 16A
• IP rating - IP20
• Certificates - CE, RoHS

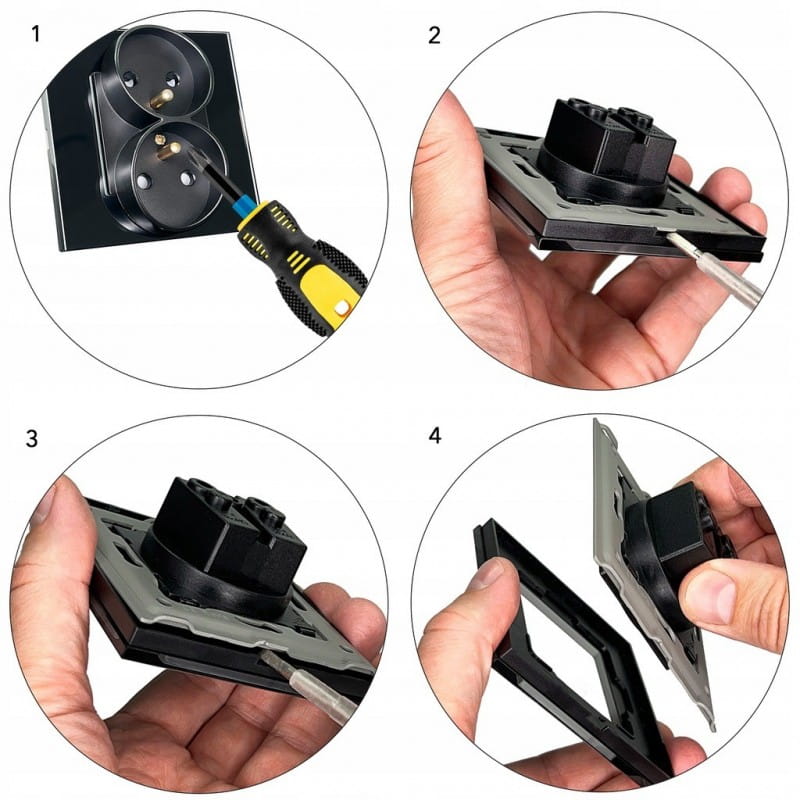

Before installing in the wall box, detach the module from the frame using a screwdriver:

1. Unscrew the front panel (two screws)
2. Locate the hole at the base of the frame
3. Gently lever until the frame separates from the module

The socket is designed for a standard single box Ø 60 mm

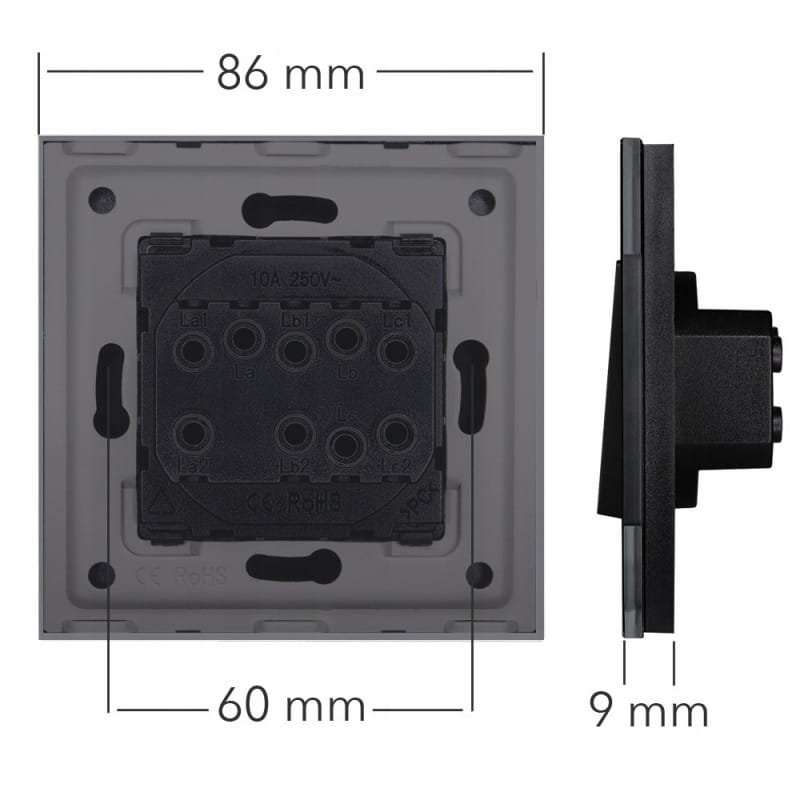

Dimensions:

• frame width - 86 mm
• screw spacing to box - 60 mm
• frame thickness - 9 mm
